| Production: | 27.5er Plus Electric Full Suspension Bike Frame | Material: | Aluminum Alloy 6061,T4&T6 Treatment |
|---|---|---|---|
| Riding Style: | Electric AM/Enduro, Ebike | Motor: | Brose Mid-Drive System |
| Battery Box: | Integrated Built-in Battery Box In Downtube | Wheel Travel: | 140 Mm |
| Shock: | 200 X 57 Mm | Dropout: | 148 X 12mm Thru-axle |
| Tire Maximum: | 27.5 X2.80 Or 29 X 2.30 | Sizes: | All Popular Sizes |

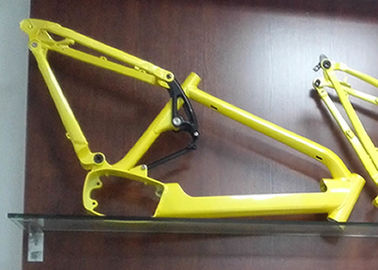

27.5er Plus Electric Full Suspension Bike Frame Aluminum Trail/Am Brose Ebike
Features:
1) 27.5 Plus Electric Full Suspension Bike Frame with 148x12 dropout , max tire 27.5er x 2.80 or 29er x 2.30
2) Motor Compatible: Brose mid-drive system
3) Trail/AM Riding Style with 140mm wheel travel, Shock Size: 200x57mm
4) Integrated built-in batttery box in downtube which make complete bike looks like an ordinary pedalled bicycle.
5) OEM/ODM can be acceptable. Trial Order acceptable before quantity order. We can make drawing modification as per your requirements.
6) Warranty: 2 years
Technical Data:
| Product | 27.5er Plus Electric Full Suspension Bike Frame, Ebike Frame |
| Motor Compatible | Brose, Mid-drive motor |
| Battery Box | Integrated built-in battery box in down tube |
| Model | S2715 |
| Material | Aluminum Alloy 6061, T4 & T6 |
| Welding | TIG+SMT welding |
| Wheel Size | 27.5 Boost, 29er |
| Max. Tire | 27.5erx 2.80 or 29er x 2.30 |
| Wheel Travel | 140 MM |
| Shock | 200 x 57 mm |
| Rear Dropout | 148 x 12mm |
| Head tube | Tapered(44/55mm) |
| Seat post | 31.6 mm |
| Weight | 3.6 kg (17.5") |
| Headtube angle | 67 degree |
| Brake | Disc(180mm Roter,Post Mount) |
| ChainRing | 34T/36T compatible |
| Routing | Internal cable rountings, inner routing dropper post space available |
| Sizes | all popular sizes available |
| Linkage system | 4-linkage system |
| Linkage Bearings | Premium Cartridge Bearings |
| OEM/ODM | Acceptable, modification can be made upon customer's request |
| Painting | Raw materials or customized painting design |
| Sample order | Acceptable |
| Riding Style | Electric Trail/All Mountain |
| Warranty | 2 years |
FAQ
1) Do you have sample in stock?
No. It is OEM model. We could supply sample after evaluation. After price confirmation by clients, we start to make sample. We not supply for end-customers pls understand.
2) How much sample cost.
Sample cost is about 1.6-1.8 high than bulk order. Balance of sample difference will be refunded during quantity order.
3) How long will it take for sample protype.
90 days about.
4) What's payment:
Paypal for sample, and T/T(50% deposit and balance to be paid before shipment) for quantity order.
5) Do you have any warranty?
Yes. Warranty for OEM orders are 2 years. For warranty, pictures shall be provided to decide the reasons.
