Product Details:
Payment & Shipping Terms:
|
| Product: | 20er Aluminum Light BMX Frame | Material: | Aluminum Alloy 6061,T4& T6 Heat Treatment |
|---|---|---|---|
| Model: | BX-203 | Wheel Size: | 20er |
| Size: | 10.6"(270mm) | Brake: | Disc Brake ( V Brake Optional ) |
| Rear Dropout: | 135x 9qr | OEM/ODM: | Acceptable |
| Highlight: | lightweight bmx frames,bmx race frames |
||

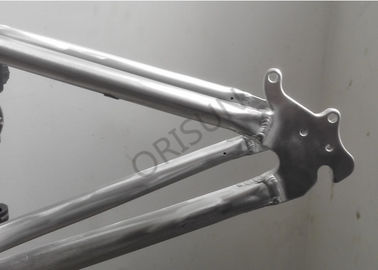

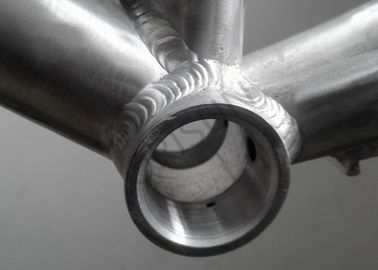

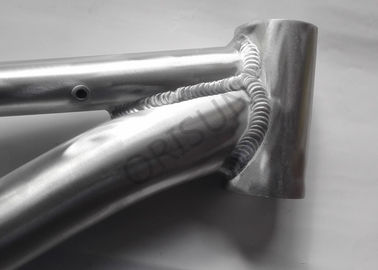

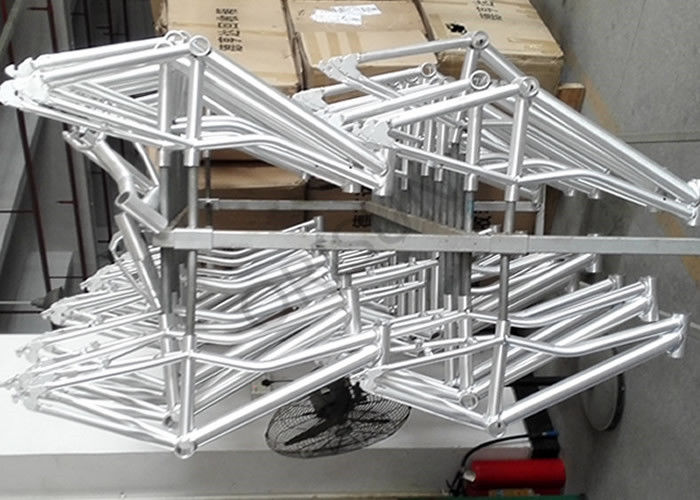

20er Aluminum Light BMX Frame Disc Brake Freestyle Kids Mountain Bike
We can manufacture BMX/dirt Jump Frame as per customer's requirements and drawings.
Features:
1) 20er Aluminum Light BMX bike Frame ( 24" available also), 1300 grams only
2) Brake: Disc Brake or V brake optional, 135x9qr dropout
3) OEM/ODM production for Raw materials or customer's painting design.
4) Moq is 50 units. Samples are available
5) 2 years' warranty. Every frame has VIN number under bottom bracket
Specifications:
| Product Name | 20er Aluminum Light BMX Bike Frame/Freestyle Bike Frame |
| Material | Aluminum Alloy 6061,T4&T6 heat treatment |
| Welding | TIG+Flat welding+Putty |
| Model No. | BX203 |
| Wheel Size | 20er (20er also available) |
| Headtube | 1-1/8"(44mm) |
| Dropout | 135x9qr |
| Seat post | 27.2 mm |
| Middle Tube | 31.9mm |
| Brake | Disc Brake (or V brake) |
| ST | 320mm |
| TT | 486mm |
| RC | 415.7mm |
| Bottom Bracket | BB68mm |
| Weight | 1300 grams |
| OEM/ODM | acceptable |
| Painting | as per customer's painting design |
| Warranty | 2 years |
