Product Details:
Payment & Shipping Terms:
|
| Product: | 26er Aluminum Fat Bike Frame | Material: | Aluminum Alloy 6061,T4 & T6 |
|---|---|---|---|
| Wheel Size: | 26er | Max. Tire: | 26 X 4.0 |
| Rear Dropout: | 190 X 12 Mm Thru-axle | Sizes: | All Sizes Available |
| Highlight: | fat tire bike frame,snow bike frame |
||

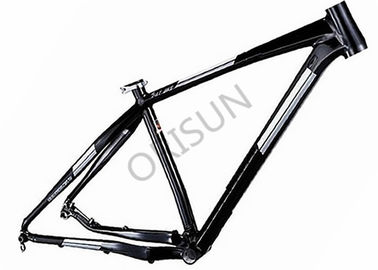

26er x4.0 Aluminum Fat Bike Frame Dropout 190x12 Snow Bike Disc Brake
Description:
1. P1160 is 26er Fat Bike Frame with 190x12 dropout and 100mm gxp bb. It is designed and produced with patented SPF (super plastic forming)technology. Max tire is 26er x 4.0.
2. OEM/ODM order is welcome for P1160 fat bike frame. Painting design and decal is acceptable.
3. Frame Warranty 2 years.
Technical Data:
| Product Name | 26er Aluminum Fat Bike Frame |
| Material | Aluminum Alloy 6061, T4 & T6 heat treatment |
| Welding | TIG+SMOOTH Welding+ Putty |
| Model | P1160-2015 |
| Wheel Size | 26er |
| Dropout | 190x12 thru-axle |
| Maximum Tire | 26er x 4.00 |
| Bottom Bracket | GXP 100mm |
| Headtube | Tapered(Upper1-1/8",Lower1-1/2") |
| Seatpost | 31.6mm |
| Head tube angle | 69 ° |
| Seat tube angle | 74° |
| TT length | 565mm(16").590mm (18") |
| Fork length | 468mm |
| RC | 676.2mm |
| RC | 460mm |
| Weight: | 1910 grams(18") |
| Sizes | All Popular Sizes available |
| OEM/ODM | yes |
| Finish | Raw Materials/Anodized/Full Painted |
| Application | Fat bike, Snow bike, fatbike |
| Warranty | 2 years |
